In the vast ecosystem of industrial and mechanical components, the washer is one of the most common, yet most critical, parts. Its simple function—to distribute load and protect a surface—is essential. However, when an application requires more than just load distribution, material choice becomes everything. While steel is the default, copper is the high-performance specialist.
Copper washers are chosen for a unique set of properties that steel cannot offer. They are fundamental to safety, efficiency, and reliability in systems ranging from high-voltage electrical panels to high-pressure hydraulic lines.
But the term “copper washer” is not a one-size-fits-all description. The design of the washer is just as important as the material it is made from. Different types, from simple flat disks to complex spring-loaded designs, are engineered for very specific tasks. This article provides a comprehensive look at the different types of copper washers and the specific industrial problems they are designed to solve.
The Foundational Properties of Copper
Before exploring the types of washers, it is essential to understand why copper is such a valued material for these components. Its physical properties make it a unique problem-solver.
- Excellent Ductility (Sealing Power): Copper is a very soft and malleable metal. Unlike hard steel, it deforms under pressure without breaking. This is its greatest asset in sealing applications. When tightened, a copper washer will “crush” or “flow” into the microscopic imperfections of the two mating surfaces, creating an incredibly tight, reliable, metal-to-metal seal that can contain high-pressure fluids and gases.
- High Electrical & Thermal Conductivity: Copper has the highest electrical conductivity of any non-precious metal. This makes it the only logical choice for high-current electrical connections. It provides a large, clean surface for maximum current flow with minimal resistance, which in turn reduces heat buildup. It is also an excellent thermal conductor, allowing it to help draw heat away from critical components.
- Corrosion Resistance: Copper is highly resistant to corrosion in many environments, including water, steam, and many industrial chemicals. It does not rust like iron; instead, it forms a characteristic blue-green patina (copper oxide-sulfate) that is non-porous and actually protects the underlying metal from further attack.
- Non-Sparking: As a non-ferrous metal, copper is non-sparking. This is a critical safety feature in applications involving flammable gases, fuels, or solvents, where a spark from a steel component could be catastrophic.
- Anti-Galling: When stainless steel fasteners are tightened, they can “gall” or cold-weld together, making disassembly impossible. Copper acts as an anti-galling agent, preventing this from happening, which is why it is often used with stainless steel fittings.
The Main Types of Copper Washers and Their Uses
These core properties are leveraged in different ways across various washer designs. Each type is engineered for a specific function: conducting, sealing, locking, or spacing.
1. Type: Flat Copper Washers (The Conductor and Distributor)

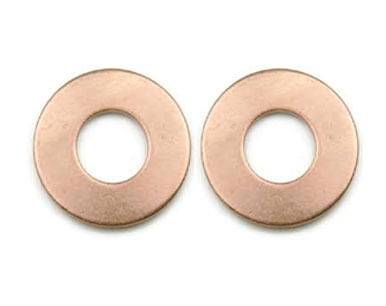

- What They Are: This is the most basic and common design—a simple, flat, circular disc with a hole in the middle. It is the “standard” washer, but made from copper.
- Primary Function:
- Electrical Conductivity: This is their main use. In an electrical connection, such as a grounding strap to a chassis or a cable lug to a busbar, a copper flat washer provides a large, highly conductive surface area. This ensures a reliable, low-resistance path for the electrical current.
- Load Distribution: Like all flat washers, they also distribute the clamping force of a bolt or screw over a wider area. This is important when fastening to softer materials (like a plastic housing) or when a large contact surface is needed for conductivity.
- Industrial Applications:
- Electrical: Power distribution panels, busbar assemblies, grounding terminals, and switchgear.
- General Engineering: Used as general-purpose, corrosion-resistant spacers in plumbing and marine applications.
2. Type: Copper Crush Washers (The Sealer)
- What They Are: These are the sealing specialists. A “crush washer” is typically a flat copper washer that has been put through an annealing process. Annealing involves heating the copper and cooling it slowly, which makes it extremely soft and ductile—far softer than a standard flat washer.
- Primary Function: Sealing. They are designed to be used once and “crushed” (plastically deformed) when tightened. This deformation creates a perfect, custom gasket that provides an unparalleled seal against liquids and gases, even under high pressure and temperature.
- Industrial Applications:
- Automotive: This is the most famous application. They are used as oil drain plug washers, brake line seals (on banjo bolts), fuel line seals, and in transmission systems.
- Hydraulics & Pneumatics: Used to seal high-pressure fittings and valves on hydraulic rams, pumps, and compressed air systems.
- Plumbing & HVAC: Found in high-end valves, pressure gauges, and refrigeration systems to provide a leak-proof seal.
3. Type: Copper Spring & Lock Washers (The Tensioner)
- What They Are: This category includes any washer that is not flat. They are designed to act as a spring, exerting a constant force on the fastener to resist loosening from vibration or thermal cycling. Common types include:
- Split Washers (Spring Washers): A ring that is split and bent into a slight helical shape. When tightened, the two sharp edges of the split bite into the bolt and the mating surface.
- Belleville (Conical) Washers: A cone-shaped washer that flattens under load, providing a very high spring force.
- Tooth Lock Washers (Internal/External): Have “teeth” on the inside or outside diameter that bite into the surfaces to prevent rotation.
- Primary Function: While the primary function is locking, making them from copper adds the critical element of electrical conductivity. They ensure a connection (like a terminal on a vibrating motor) stays both mechanically tight and electrically conductive.
- Industrial Applications:
- Electrical Panels: Used on terminal blocks and circuit breakers where vibration from machinery or the environment could loosen a critical connection.
- Automotive/Marine: Securing electrical grounds or high-current connections to a vehicle frame that is subject to constant motion and vibration.
- Busbar Joints: Belleville washers in copper or copper alloys are often specified for busbar connections that experience thermal expansion and contraction, as the spring action maintains a constant, safe clamping force.
4. Type: Copper Shoulder Washers (The Spacer & Grounder)
- What They Are: A more complex design featuring a flat washer with an integrated “shoulder” or “bushing” (a hollow cylinder) on one side.
- Primary Function: Spacing and alignment. The shoulder is designed to fit inside a mounting hole, precisely locating the component, while the flat part provides a landing for the fastener. When made of copper, it serves as a conductive spacer, often used to ground a component (like a PCB) to a metal chassis while maintaining a precise distance.
- Industrial Applications:
- Electronics: Mounting printed circuit boards (PCBs) or components to a chassis while creating a reliable ground path.
- Panel Building: Used to mount switches or connectors to a panel, providing both a solid ground and correct alignment.
How to Select the Right Copper Washer
Choosing the correct type of copper washer depends on a few key questions:
- What is the Primary Job?
- Leaking: Do you need to stop a fluid or gas? Choose a Copper Crush Washer.
- Current: Do you need to pass electricity? Choose a Flat Copper Washer.
- Vibration: Do you need to prevent a conductive joint from loosening? Choose a Copper Lock or Spring Washer.
- Spacing: Do you need to align a component and ground it? Choose a Copper Shoulder Washer.
- What is the Environment?
- While all copper is corrosion-resistant, the pressure and temperature of the system are key. High-pressure sealing applications demand a soft, annealed crush washer.
- What is the Quality?
- The performance of a washer, especially a sealing washer, is 100% dependent on its quality. This includes using the correct copper grade (like C110 ETP – Electrolytic Tough Pitch) and, for sealing, ensuring it has been properly annealed to the correct softness. A washer that is too hard will not deform and will not seal.
This is why working with a knowledgeable Copper washers supplier is a critical step. An expert supplier can provide material certifications and ensure that the washer provided is not just the right shape but the right material specification and temper for its intended application.
Conclusion
Copper washers are far from simple, interchangeable hardware. They are high-performance, engineered components designed to solve specific industrial challenges that other materials cannot. From providing the leak-proof seal in a car’s brake system to ensuring a safe, conductive path in a high-voltage power panel, the specific type of copper washer selected is a critical decision.
