In the world of fluid power, precision engineering, and heavy machinery, selecting the right materials is a foundational step. When discussing components for hydraulic cylinders, two terms frequently appear: “seamless tubes” and “honed tubes.”
For those new to the industry, this can be a significant point of confusion. Are they different? Are they the same? Is a honed tube a type of seamless tube?
The simplest way to understand the difference is to think of it as a “raw material” versus a “finished product.” A seamless tube is the starting point, and a honed tube is what that starting point becomes after a precise finishing process. This distinction is not just a technicality; it is the single most important factor in the performance, efficiency, and lifespan of a hydraulic system.
This article will break down the characteristics of each, explain the vital manufacturing process that separates them, and clarify why this difference is critical for any high-pressure application.
Part 1: Understanding the Raw Material – The Seamless Tube
A seamless tube, as its name implies, is a pipe or tube manufactured without a welded seam. This is its defining structural characteristic.
How Are Seamless Tubes Made?
They are typically produced from a solid, cylindrical piece of steel called a “billet.” This billet is heated to a high temperature and then pierced through the center with a mandrel. A series of rollers then elongates the pierced billet over the mandrel, stretching and forming it into a tube.
Because there is no weld, a seamless tube has a uniform structure and high mechanical strength. This makes it an ideal choice for applications involving high pressure, as there is no “weak link” or seam that could potentially fail. Common grades for these applications include E355 (ST52), which is known for its high yield strength and good weldability.
The “Raw” Properties of a Seamless Tube
While a seamless tube is strong, it is still considered a raw material in the context of precision hydraulics. Its key limitations lie in its internal bore (the hole).
- Surface Finish: The internal surface is relatively rough. It has what is known as a “mill finish,” which is the texture left behind by the manufacturing process.
- Dimensional Tolerances: The internal diameter (ID) is not exact. It has standard tolerances, meaning the diameter can vary slightly along the length of the tube.
- Geometric Accuracy: It may not be perfectly round (a condition called “ovality”) or perfectly straight (a condition called “taper”).
For general piping or structural applications, these properties are perfectly acceptable. But for a hydraulic cylinder, this raw internal surface is a critical flaw.

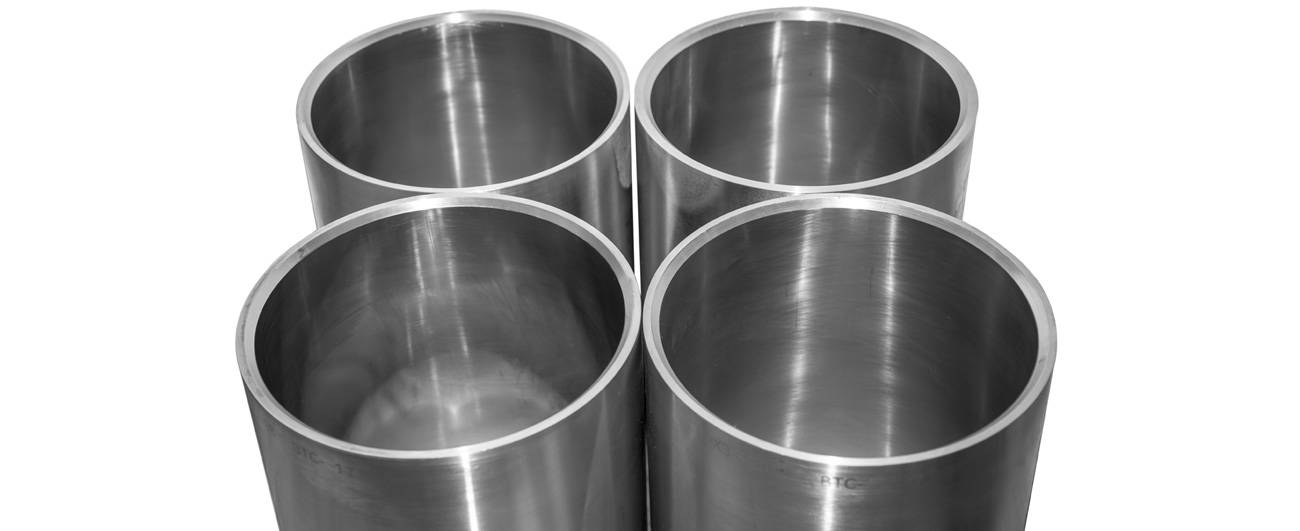

Part 2: Understanding the Finished Product – The Honed Tube
A honed tube is a value-added product. It is a seamless tube that has undergone a specialized internal abrasive machining process called honing.
The entire purpose of honing is to transform the rough, imprecise inner diameter of a raw seamless tube into a surface that is perfectly suited for a dynamic seal.
The Manufacturing Process: Honing
Honing is a precision finishing process. It involves using a special tool called a honing head, which is fitted with abrasive stones (similar to very fine-grain sandpaper or whetstones).
This honing head is inserted into the seamless tube and begins a complex motion: it rotates while simultaneously stroking back and forth. As it does this, the abrasive stones expand and press against the inner wall, carefully removing a microscopic amount of material.
This process is slow and meticulous, but it achieves three things at once:
- Creates a Precision Diameter: It shaves off all the high spots until the entire internal bore is one precise, consistent diameter, often to a tight tolerance like H8 or H9.
- Corrects Geometric Flaws: The honing process naturally removes ovality and taper, making the tube’s bore exceptionally round and straight.
- Produces a Specific Surface Finish: This is the most critical part. Honing creates a unique “cross-hatch” pattern on the surface.
Why the “Cross-Hatch” Pattern is Essential
If you were to look at a honed surface under a microscope, you would see a pattern of fine, helical scratches crossing each other at a specific angle. This is not a flaw; it is the goal.
This cross-hatch pattern acts as a perfect reservoir for a thin film of hydraulic oil. When a piston and its seal move back and forth inside the cylinder, this trapped oil provides constant lubrication. This lubrication is essential for:
- Reducing Friction: The seal glides smoothly, requiring less energy.
- Preventing Wear: It prevents the “dry” seal from tearing itself apart on the metal.
- Improving Seal Life: A well-lubricated seal can last for millions of cycles.
Why You Can’t Use a Raw Seamless Tube for a Hydraulic Cylinder
Understanding the honed tube’s properties makes it clear why a raw seamless tube is unsuitable for a hydraulic cylinder.
If you were to install a piston with a high-performance seal into a raw seamless tube, the system would fail almost immediately.
- Seal Destruction: The rough “peaks and valleys” of the mill-finish surface would act like sandpaper, tearing and shredding the seal as it moves.
- Fluid “Blow-By”: The geometric inaccuracies—the ovality and taper—would create tiny gaps between the seal and the tube wall. High-pressure hydraulic fluid would blast through these gaps, causing a complete loss of power and efficiency.
A honed tubes manufacturer is not just a steel supplier; they are a precision engineering partner. They perform the critical, value-added service of transforming a strong-but-rough seamless tube into a highly precise component that makes modern hydraulic power possible. Partnering with an expert honed tubes manufacturer is the only way to guarantee the reliability and longevity of a hydraulic cylinder.
Honed Tubes vs. Seamless Tubes: A Direct Comparison
This table summarizes the key differences between the raw material and the finished product.
| Feature | Seamless Tube (Raw Material) | Honed Tube (Finished Product) |
| Definition | A tube manufactured without a weld seam. | A seamless tube that has undergone internal honing. |
| Internal Surface | Mill finish (relatively rough). | Precision-honed (extremely smooth). |
| Surface Pattern | No specific pattern. | A “cross-hatch” pattern for oil retention. |
| Internal Diameter | Standard dimensional tolerances. | Precision tolerance (e.g., H8, H9). |
| Geometric Accuracy | Standard (may have slight ovality/taper). | High (corrected for roundness and straightness). |
| Primary Use | General piping, structural members, raw material for machining. | Hydraulic cylinder barrels, pneumatic cylinders. |
| Ready for Seals? | No. Will destroy seals and leak. | Yes. Designed specifically for dynamic seals. |
| Cost | Lower (base commodity). | Higher (value-added manufacturing). |
An Alternative: Skived and Roller Burnished (SRB) Tubes
It is worth noting one other common finishing process: Skiving and Roller Burnishing (SRB). Like honing, SRB is a process applied to the inside of a seamless tube to create a precision bore.
- Skiving: A cutting tool passes through the tube, “shaving” the ID to a precise diameter.
- Roller Burnishing: A set of hard rollers follows the cutting tool, cold-working the surface by “flattening” the microscopic peaks.
This SRB process is much faster than honing and produces an even smoother, mirror-like finish. It’s an excellent choice for many applications. The main difference is that it does not create the cross-hatch oil-retention pattern that is the signature of honing.
Conclusion: From Raw Material to Precision Component
The difference between a seamless tube and a honed tube is the critical difference between potential and performance. A seamless tube offers the raw strength needed to contain pressure, but a honed tube provides the essential precision needed to make that pressure useful.
In short: All honed tubes start as seamless tubes, but not all seamless tubes are honed. The honing process is the vital manufacturing step that transforms a strong pipe into a sophisticated engineering component, ready for the demanding, high-stakes world of hydraulics.
To source high-quality honed tubes and other precision steel products for your engineering needs, you can contact Dhanlaxmi Steel.
